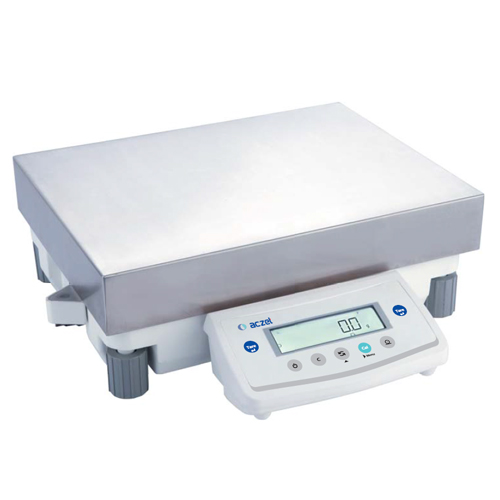

Industrial Precision Balances

GLP

Built-in clock make all your documents ISO / GLP / GMP compliance.

USB

Optional USB interface instead of RS 232C interface can be ordered.

Overload Protection

Capacity tracker built into display for easily monitoring possible overloads.

Brilliant readability

Bright Backlit display with its 15-mm digits are plain to see, under any lighting conditions.

Bidirectional RS-232C data interface is another standard feature.

Winning technology

Monotech technology, which ensures long-term high accuracy.

Fast results

Latestpowerful microprocessor technology, shortening response time for faster results, typical response time is just 3 seconds.

Optional

External Battery Backup.

Statistical Calcu lat ion Function

The balance display and / or output statistical calculation data as No. (number of data), SUM (total), MAX (maximum), MIN (minimum), R [range (maximum - minimum)], AVE (average), SD (standard deviation) and CV (coefficient of variation).

Application

Below balance weighing
Piece counting
Percent Weighing
Check Weighing
Density Calculation

Technical Specification

Model	CY 15001H	CY 20001H	CY 25001H	CY 35001H	CY 50000H	CY 6000H	CY 60005H
CAPACITY	15 kg	20 kg	25 kg	35 kg	50 kg	60 kg	50 kg
READABILITY	0.1 gm	0.1 gm	0.1 gm	0.1 gm	1 gm	1 gm	0.5 gm
REPEATABILITY (SD)	0.1 gm	0.1 gm	0.1 gm	0.1 gm	1 gm	1 gm	0.5 gm
LINEARITY(+/-)	0.2 gm	0.2 gm	0.2 gm	0.2 gm	2 gm	2 gm	1 gm
MINIMUM SAMPLE WT. AS PER USP	82 gm				1600 gm		500gm
MINIMUM WT. AS PER (U=1%, SD=2)	8.2 gm				160 gm		50gm
PAN SIZE (MM / INCH)	400 x 300 /15.7” x 11.8”
RESPONSE TIME	2 - 3 Sec.
DISPLAY	Alpha Numerical LCD Backlite Display with A.E.P.
CALIBRATION	Automatic External Calibration
UNITS OF MEASURE	gm, mg, ct, GN, mo, oz, dwt, t1T, t1H, t1S, mom, Bat, MS
TARE RANGE (SUBTRACTIVE)	Full
OPERATING TEMP.	15ºC to 35ºC
SENSITIVITY DRIFT.	± 2ppm (2 x 10 / ºC)
PROTECTION	User Administration & Password Protection.
APPLICATION MODES	PCS, % Weighing, Animal / Dynamic Weighing Check Weighing, Automatic Density, Determination, Formulation Automatic Statistic Calculator etc.
POWER SUPPLY	A/C Adaptor 230V or 115V / +/-20% 50-60Hz
COMPLIANCE	ISO, GLP / GMP USP Compliance
HOUSING DIM. / CHAMBER HEIGHT (MM)	517 x 302 x 130
WEIGHT APPROX	15 kg
