Home » Scales » Industrial Platform Scales » Platform Scale IP 67 Protected Stainless Steel Of S.S. 304

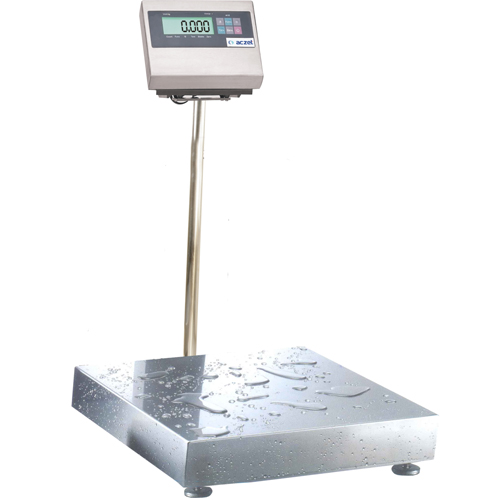

Platform Scale IP 67 Protected Stainless Steel Of S.S. 304

Platform Scale

Standard Features

High resolution up to 15,000 counts.
Easy to read (0.56")Bright LED / LCD Display.
Net Gross function.
Rugged construction suitable for industrial application
Optional remote display available for customer.
Environmentally protected load cells IP-67 class Stainless Steel Load cells for washdown application.
Stainless Steel capsulated load cell for complete washdown application.
SS Back Rail Support Provided.
304 or 316
GMP, FDA Compliance.
Auto-OFF Function for power saving.
Safety overload 150% of the scale capacity.
Dust Resistance membranes key.

Platform Scale

Dispaly

0.56" Bright RED LED / LCD display.

Power Supply

AC 230V + 10% 50-60Hz & with built-in rechargeable battery backup.

Optional

RS 232C Serial Interface Port Facility
4-20 mA, set point facility.

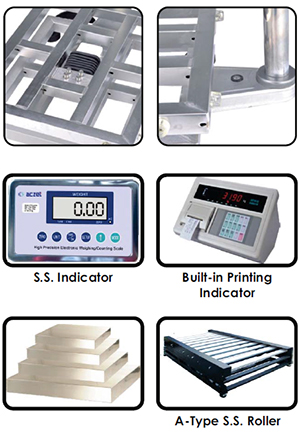

A-Type S.S. Roller Ramp.
Built-in Printing Indicator.

Technical Specification

Model	CTG 50S	CTG 60HS	CTG 60S	CTG 100S	CTG 150S
CAPACITY	50 kg	60 kg	60 kg	100 kg	150 kg
READABILITY	5 gm	5 gm	10 gm	10 gm	10 gm
PAN SIZE (MM)	400 x 400 / 15.6" x 15.6"		500 x 500 / 19.5" x 19.5"
DISPLAY	Bright LED / LCD
POWER SUPPLY	AC 230V + 10% 50-60Hz

Model	CTG 200S	CTG 300S	CTG 500S	CTG 500S	CTG 1000S
CAPACITY	200 kg	300 kg	500 kg	500 kg	1000 kg
READABILITY	20 gm	20 / 50 gm	50 gm	50 gm	100 gm
PAN SIZE (MM)	600 x 600 / 23.4" x 23.4"			750 x 750 / 29.25" x 29.25"	1000 x 1000 / 39" x 39"
DISPLAY	Bright LED / LCD
POWER SUPPLY	AC 230V + 10% 50-60Hz
