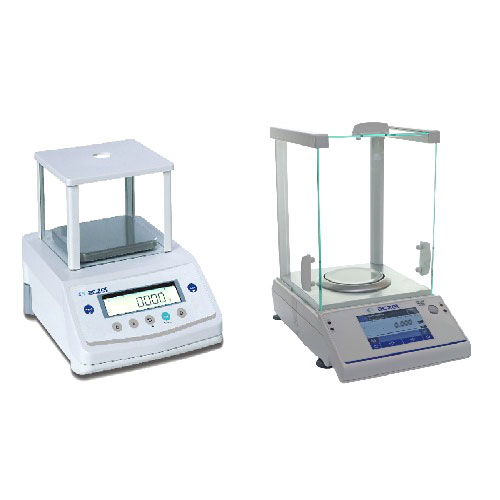

Precision Balances (External / Internal)

Application

Weighing
Net / Total
Check Weighing
Weight accumulation
Piece counting
Animal Weighing
Dynamic Weighing
Density determination
Below balance weighing
IP Protection : IP 54
Spacious draft shield interior
Two tare keys (Left & Right)

Sprit leveling

Balances have adjustable feet fro maintaining / providing uniform level.

The Briliant Mono-Tech

Unique & Unequalled high end MONO-TECH technology (Weigh Sensor) to match the highest international standards.

Easy Data Transfer

Interface RS 232C Optional USB (Windows direct communication).

Electromagnetic Compatibility

Metal housing eliminates the effects of thunderstorms or electromagnetic inter-ference from other equipments.

Power Saving Mode

Auto zero tracking

Overload Protection

Capacity tracker built into display for easily monitoring possible overloads.

Excellent Readability

High-contrast, backlit display 15mm digits size is exceptionally easy to read under any room lighting conditions.

GLP

Built-in clock make all your documents ISO / GLP / GMP compliance.

Anti-theft device

Balance are equipped with a lug for optional anti-theft device. The anti-theft device (cable with lock) is suitable for all models.

Statistics

This smart feature enables the user to obtain the statistics of the data stored in the scale including details such as number of readings, minimum value, maximum value, standard deviation, difference and Coefficient of variance.

Technical Specification

Standard Level Model	CY 123	CY 223	CY 323	CY 423	CY 513	CY 723	CY 1003	CY 2003	CY 3003
CAPACITY	120 gm	220 gm	320 gm	420 gm	510 gm	720 gm	1000 gm	2000 gm	3000 gm
READABILITY	0.001 gm	0.001 gm	0.001 gm	0.001 gm	0.001 gm	0.001 gm	0.001 gm	0.001 gm	0.001 gm
REPEATABILITY (SD)	0.001 gm	0.001 gm	0.001 gm	0.001 gm	0.001 gm	0.001 gm	0.002 gm	0.003 gm	0.003 gm
LINEARITY(+/-)	0.002 gm	0.002 gm	0.002 gm	0.002 gm	0.002 gm	0.002 gm	0.005 gm	0.005 gm	0.005 gm
TARE RANGE (SUBTRACTIVE)	-120 gm	-220 gm	-320 gm	-420 gm	-510 gm	-720 gm	-1000 gm	-2000 gm	-3000 gm
MINIUM LOAD	20 mg
MINIMUM SAMPLE WT. AS PER USP	1gm to 2gm
MINIMUM WT. AS PER (U=1%, SD=2)	0.1 gm to 0.2 gm
PAN SIZE (MM / INCH)	110mm Ø				128 x 128 mm
RESPONSE TIME	2 - 3 Sec.
DISPLAY	Alpha Numeric LCD Backlite Display with A.E.P. / Touchscreen Display
CALIBRATION	Automatic External Calibration
UNITS OF MEASURE	gm, mg, ct, GN, mo, oz, dwt, t1T, t1H, t1S, mom, Bat, MS
OPERATING TEMP.	15º to 30ºC
SENSITIVITY DRIFT.	± 2ppm (2 x 10 / ºC)
APPLICATION MODES	PCS, % Weighing, Animal / Dynamic Weighing Check Weighing, Automatic Density, Determination, Formulation Automatic Statistic Calculator etc.
POWER SUPPLY	A/C Adaptor 230V or 115V / +/-20% 50-60Hz
COMPLIANCE	ISO, GLP / GMP USP Compliance
HOUSING DIM. / CHAMBER HEIGHT (MM)	342.5 (W) x 212 (D) x 193.5(H) / 81 (H)
WEIGHT APPROX	7.5 kg
