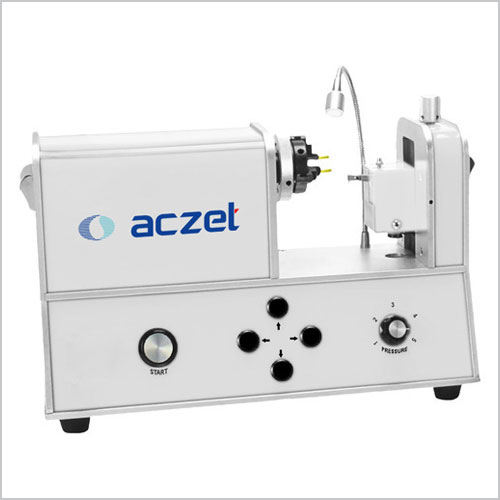

Ring Engraving Machine CPM-R

Technology

CPM-R is Needle Marking Machine, Specially design for Finger Rings & Bangles for inside & outside marking.

CPM-M is Needle Maddng Machine, Specially design for Finger Rings, Bangles for inside & outside marking flat surface pendants etc.

The New Generation Software C-Mark for Computerised Engraving Machine gives you professional engraving and personalisation solution at an affordable price.

Features

Compact design.
Standard C-Mark software with true type fonts, support, bold, italic, underline & engraving.
Uses 9 angle position system.
Depth 0.3 mm.
Repeat accuracy of 0.01 mm.
Shiny finishing without additional polishing.

Advantages

Very easy & convenient to use.
Can created your own fonts.
User friendly software.
Compact & Space Saving.
No hidden Maintenance Cost.

Engraving Samples

Technical Specification

Model	CPM-R
POWER CONSUMPTION	75w
MIN. CHARACTER SIZE	0.5 mm - 15 mm
SIZE PER DOT	0.08 - 0.15 mm
MARKING DEPTH	0.05 - 0.50mm
ROTARY MARK	360°
MARKING TYPE	In/Out side ring/bangle
INSIDE RING SIZE MARKING	12 - 70 mm
OUTSIDE RING SIZE MARKING	15 - 85 mm
PENDANT SCULPTURE RANGE	NA
RING WIDTH	20 mm
FONT	Windows based fonts
SOFTWARE	CITIZEN mark
POWER SUPPLY	AC 220V (110v option) 50 - 60Hz
MACHINE DIMENSION (MM)	385 (L) x 150 (W) x 255 (H)
WEIGHT	6.9 kg
