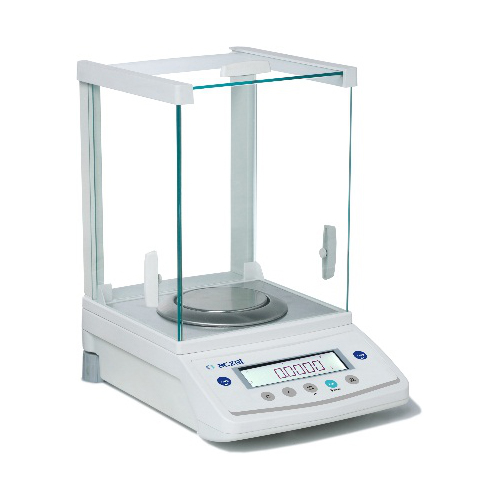

Standard Analytical Balances

Application

Weighing
Net / Total
Check Weighing
Weight accumulation
Piece counting
Animal Weighing
Dynamic Weighing
Density determination
Below balance weighing
IP Protection : IP 54
Spacious draft shield interior
Two tare keys (Left & Right)

Sprit leveling

Balances have adjustable feet fro maintaining / providing uniform level.

Electromagnetic Compatibility

Metal housing eliminates the effects of thunderstorms or electromagnetic inter-ference from other equipments.

The Briliant Mono-Tech

Unique & Unequalled high end MONO-TECH technology (Weigh Sensor) to match the highest international standards.

Overload Protection

Capacity tracker built into display for easily monitoring possible overloads.

Power Saving Mode

Auto zero tracking

Excellent Readability

High-contrast, backlit display 15mm digits size is exceptionally easy to read under any room lighting conditions.

GLP

Built-in clock make all your documents ISO / GLP / GMP compliance.

Easy Data Transfer

Interface RS 232C Optional USB (Windows direct communication).

Anti-theft device

Balance are equipped with a lug for optional anti-theft device. The anti-theft device (cable with lock) is suitable for all models.

Statistics

This smart feature enables the user to obtain the statistics of the data stored in the scale including details such as number of readings, minimum value, maximum value, standard deviation, difference and Coefficient of variance.

Technical Specification

Standard Level Model	CY 404	CY 324	CY 224	CY 124	CY 64
CAPACITY	400 gm	320 gm	220 gm	120 gm	60 gm
READABILITY	0.1 mg	0.1 mg	0.1 mg	0.1 mg	0.1 mg
REPEATABILITY (SD)	0.2 mg	0.2 mg	0.1 mg	0.1 mg	0.1 mg
LINEARITY(+/-)	0.3 mg	0.3 mg	0.2 mg	0.2 mg	0.2 mg
TARE RANGE (SUBTRACTIVE)	-400 gm	-320 gm	-220 gm	-120 gm	-60 gm
MINIUM LOAD	10 mg
MINIMUM SAMPLE WT. AS PER USP	200 mg
MINIMUM WT. AS PER (U=1%, SD=2)	20 mg
PAN SIZE (MM / INCH)	90Ø / 3.5”Ø
RESPONSE TIME	2 - 3 Sec.
DISPLAY	Alpha Numeric Backlite LCD Display
CALIBRATION	Automatic External Calibration
UNITS OF MEASURE	gm, mg, ct, GN, mo, oz, dwt, t1T, t1H, t1S, mom, Bat, MS
OPERATING TEMP.	18ºC to 30ºC
SENSITIVITY DRIFT.	± 2ppm (2 x 10 / ºC)
APPLICATION MODES	PCS, % Weighing, Animal / Dynamic Weighing Check Weighing, Automatic Density, Determination, Formulation Automatic Statistic Calculator etc.
POWER SUPPLY	A/C Adaptor 230V or 115V / +/-20% 50-60Hz
COMPLIANCE	ISO, GLP / GMP USP Compliance
HOUSING DIM. / CHAMBER HEIGHT (MM)	342.5 (W) x 212 (D) x 341(H) / 228.5 (H)
WEIGHT APPROX	8 kg
