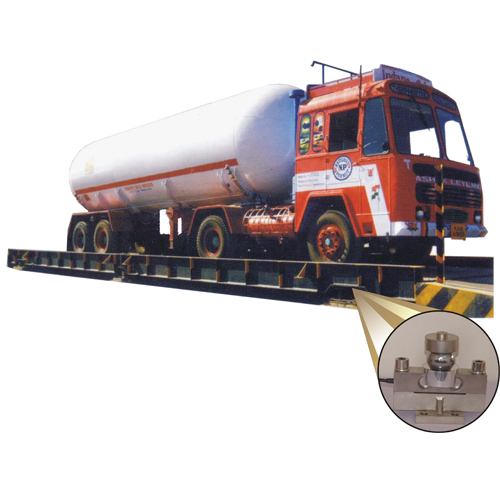

Weigh Bridge

Standard Features

Load Cell
Easy to Instal.
Surge Voltage Protection (SVP).
Offers protection from lighting strikes.
No corner weight difference.
Load Cell are made of steel Alloy compiled with various quality standard such as CE, OIML & IP ratings.
Load cell - Hermetically sealed. (IP68)
Safe load limit :150% F.S.
Ultimates load : 300% F.S.
Suitable for Hazardous Areb.

Weighbridge Indicators

Intelligent Weigh Terminal

Intelligent Terminal No. PC Required.
RED LED Display for Weight indicator.
Backlit LCD Display 2 line and 20 characters for operating instructions.
Non volatile memory up to 3,000 transaction.
Full digital calibration.
Provision for Plain & Pre-Printed Stationary.
All models are also certified CMRI, Dhanbad for use in Hazardous areas (Group 1,11 & 118)

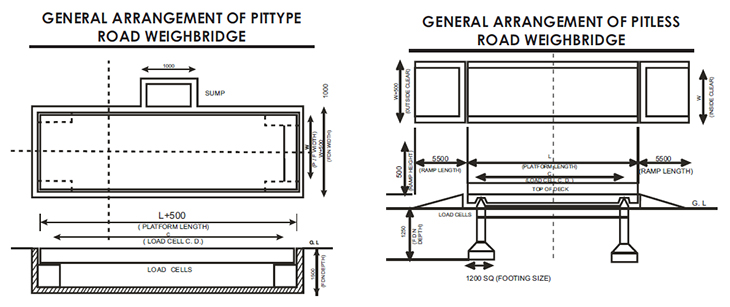

Optional

We also supply customized platform size & capacity

Weigh Bridge

Technical Specification

MODEL

WB 20T

WB 30T

WB 40T

WB 50T

WB 60

WB 80

WB 100

CAPACITY (TON)

20 Ton

30 Ton

40 Ton

50 Ton

60 Ton

80 Ton

100 Ton

RESOLUTION (Kg)

5 Kg

10 Kg

20 Kg

NO. LOAD CELL

4 / 6

PLATFORM SIZE

7.5 x 3 mtr.

9 x 3 mtr.

12 x 3 mtr.

16 x 3 mtr.

18 x 3 mtr.

16 x 3 mtr.

18 x 3 mtr.
